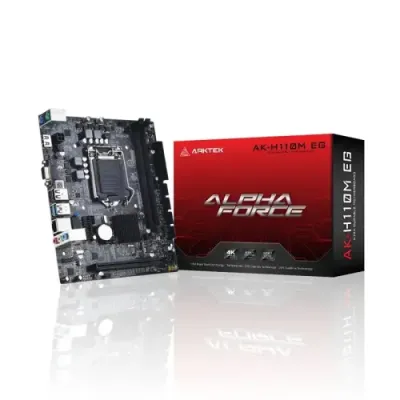

Meet the ARKTEK AK-H110M EG 7th Gen LGA 1151 Socket Motherboard, a powerhouse of versatility and performance for your computing needs. Designed to support Intel's 7th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® processors built on the efficient 14nm architecture, this motherboard pairs power with efficiency. Powered by the Intel H110 chipset, it ensures seamless connectivity and functionality. Experience enhanced graphics with integrated Intel® HD Graphics support, while the 2 DDR4 2133 MHz memory slots allow for a maximum of 16GB memory, ensuring smooth multitasking. The Realtek® RTL8105E 10/100 Mbps adaptive network card interface provides reliable networking capabilities, while the Realtek 661 integrated audio chip supports 6-channel audio-out. With 4 SATA ports, 1 PCI Express x16 slot, and various I/O ports including USB 2.0, USB 3.0, PS/2, VGA, HDMI, LAN, and audio, this micro-ATX motherboard delivers exceptional connectivity. Designed with a form factor of 19.7 x 17 cm, it fits snugly into various cases and offers 6 mounting holes for secure installation. Operating seamlessly with Windows 7 / 8 / 8.1 / 10(x64), it guarantees compatibility with your preferred operating system. Backed by a 3-year warranty and accompanied by essential accessories including SATA cables, I/O backboard, user manual, and driver CD, the ARKTEK AK-H110M EG motherboard offers both performance and reliability in one package. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Arktek Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
| Processor | |
| Supported CPU | Intel® Socket 1151 for 7th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU |
| Mainboard | |
| Chipset | Intel H110 Chipset |
| Memory | |
| Memory | DDR4 2133 MHz (Max. Supports up to 16GB Memory) 2 x Memory Slots |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Networking & Connectivity | |
| LAN | On board Realtek® RTL8105E 10/100 Mbps adaptive network card interface |
| Audio & Microphone | |
| Audio | Chip integrated by Realtek 661 on board, Supports 6-channel audio-out |
| Ports | |
| Slots | 1 x PCI Express x16 slot |
| Internal I/O Ports | 4 x SATA port 2 x USB 2.0 header supports additional 4 USB 2.0 ports 1 x USB 3.0 header supports additional 2 USB 3.0 ports 1 x Front Panel Audio header |
| External I/O Ports | 1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x VGA port 1 x HDMI port 2 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack |
| Software | |
| Software Features | Support Windows 7 / 8 / 8.1 / 10(x64) |
| Others | |
| Other Features | 6 mounting holes |
| Physical Specification | |
| Form Factor | Micro-ATX |
| Dimension | 19.7 x 17 cm |
